    Fiber Laser Series
    Introduction

    The fiber laser is a laser that uses rare earth-doped silica fibers as the gain mediums. When the pump light passes through the fiber, the rare-earth ions in the fiber absorb the pump light, and its electrons are excited to a higher energy level, which realizes the population inversion. The inverted particles transfer from the high energy level to the ground state in the form of radiation and release energy to output laser light.

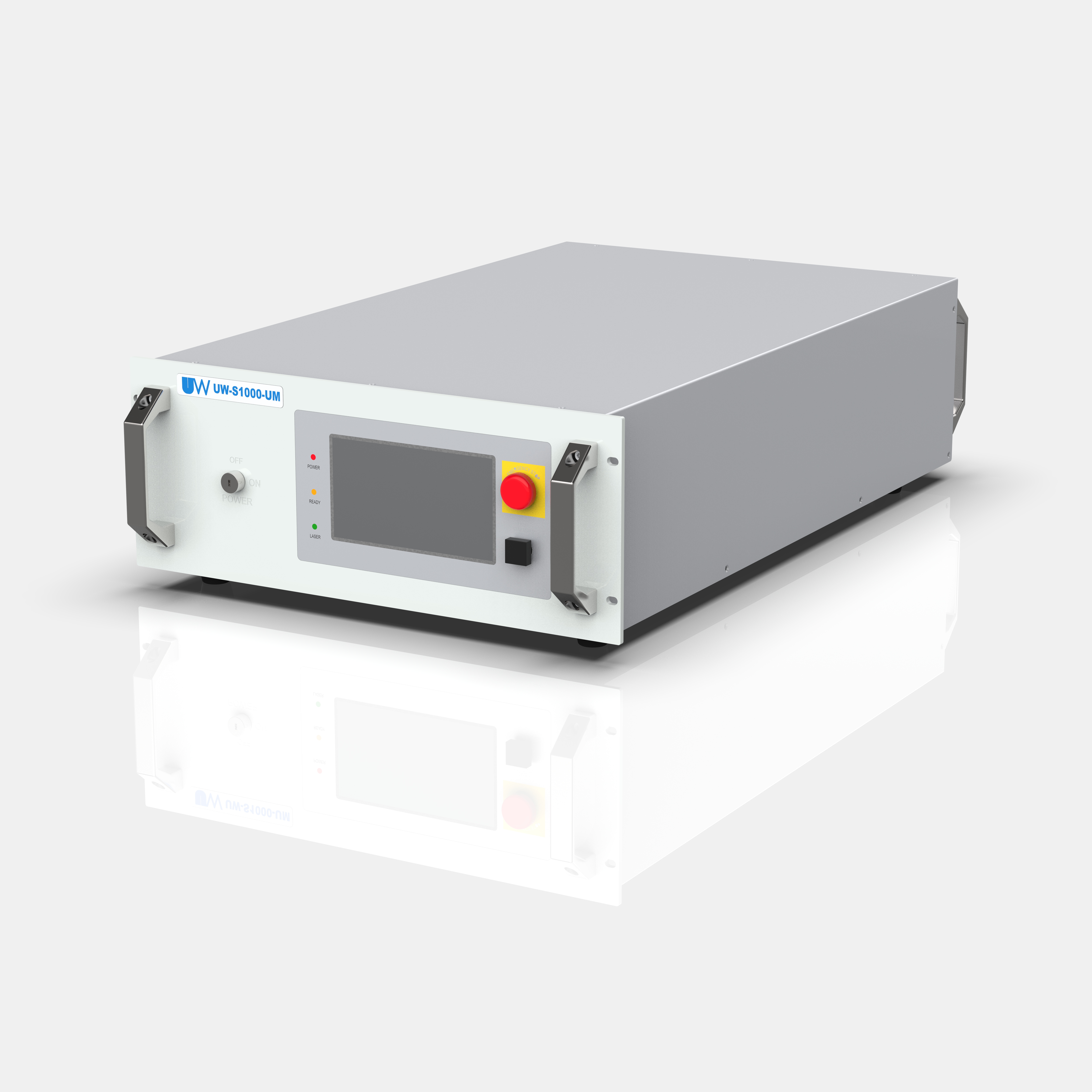

    UW-S1000-UM
    Model

    UW-S1000-UM

    Output Power

    1000W

    Power Stability

    <土1%

    Laser Wavelength

    1070nm

    Aiming and Positioning

    Red light indication (welding head CCD positioning)

    Power Input

    AC380V土10%,50/60Hz

    Operating Mode

    Quasi-continuous wave pulse/continuous/modulated

    Power Consumption

    <5KW

    Cooling Capacity Requirements

    2.5KW

    Cooling Method

    Water cooling

    Dimensions (L*W*H)

    1420mm X 690mm X 1060mm

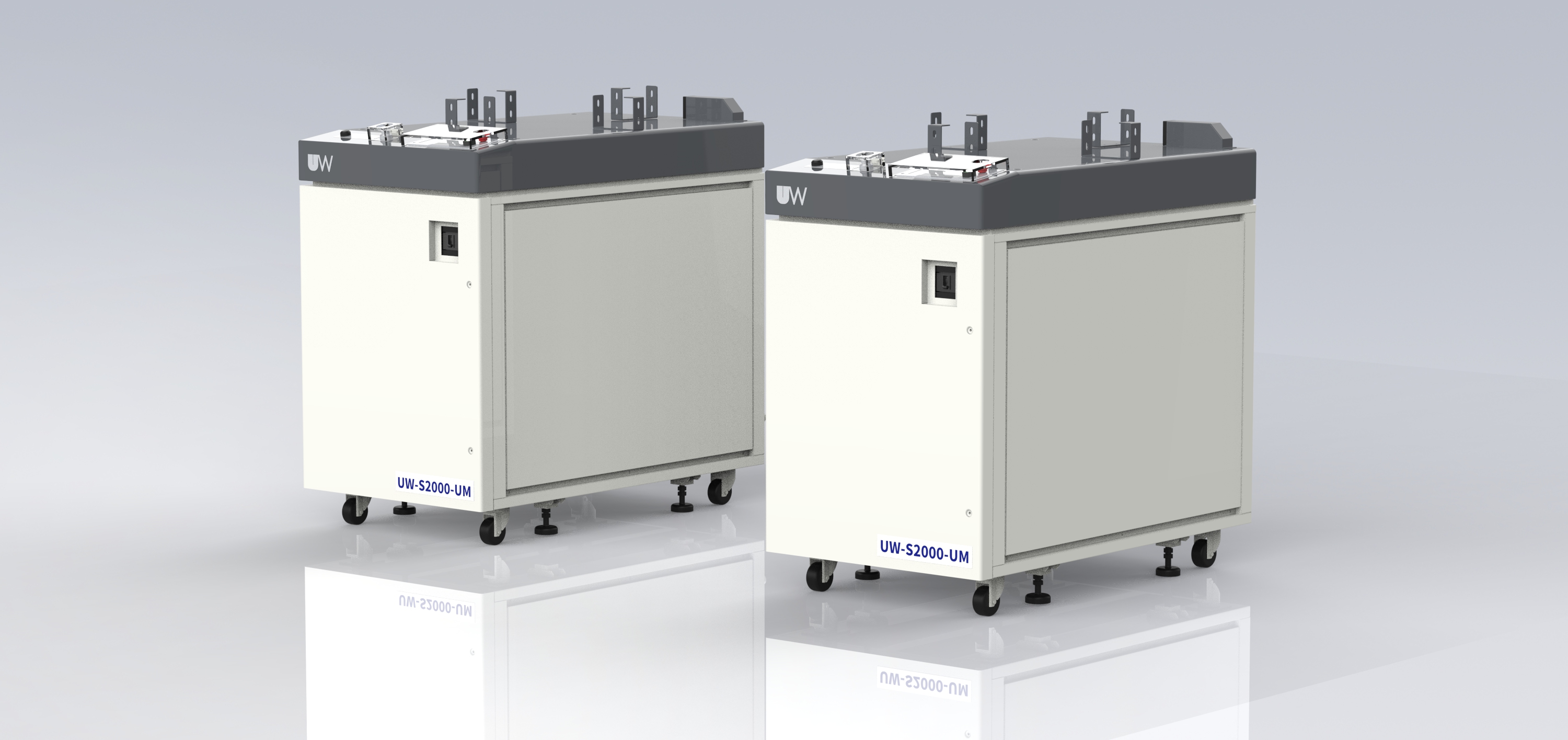

    UW-S2000-UM
    Model

    UW-S2000-UM

    Output Power

    2000W

    Power Stability

    <士1%

    Laser Wavelength

    1070nm

    Aiming and Positioning

    Red light indication (welding head CCD positioning)

    Power Input

    AC380V士10%, 50/60Hz

    Operating Mode

    Quasi-continuous wave pulse/continuous/modulated

    Power Consumption

    <10KW

    Cooling Capacity Requirements

    5KW

    Cooling Method

    Water cooling

    Dimensions (L*W*H)

    1420mm X 690mm X 1060mm

    UW-S3000-UM
    Model

    UW-S3000-UM

    Output Power

    3000W

    Power Stability

    <士1%

    Laser Wavelength

    1070nm

    Aiming and Positioning

    Red light indication (welding head CCD positioning)

    Power Input

    AC380V士10%, 50/60Hz

    Operating Mode

    Quasi-continuous wave pulse/continuous/modulated

    Power Consumption

    <15KW

    Cooling Capacity Requirements

    8KW

    Cooling Method

    Water cooling

    Dimensions (L*W*H)

    1420mm X 690mm X 1060mm

    UW-S4000-UM
    Model

    UW-S4000-UM

    Output Power

    4000W

    Power Stability

    <士1%

    Laser Wavelength

    1070nm

    Aiming and Positioning

    Red light indication (welding head CCD positioning)

    Power Input

    AC380V士10%,50/60Hz

    Power Consumption

    <20KW

    Cooling Capacity Requirements

    12KW

    Cooling Method

    Water cooling

    Dimensions (L*W*H)

    1420mmX 690mmX 1060mm

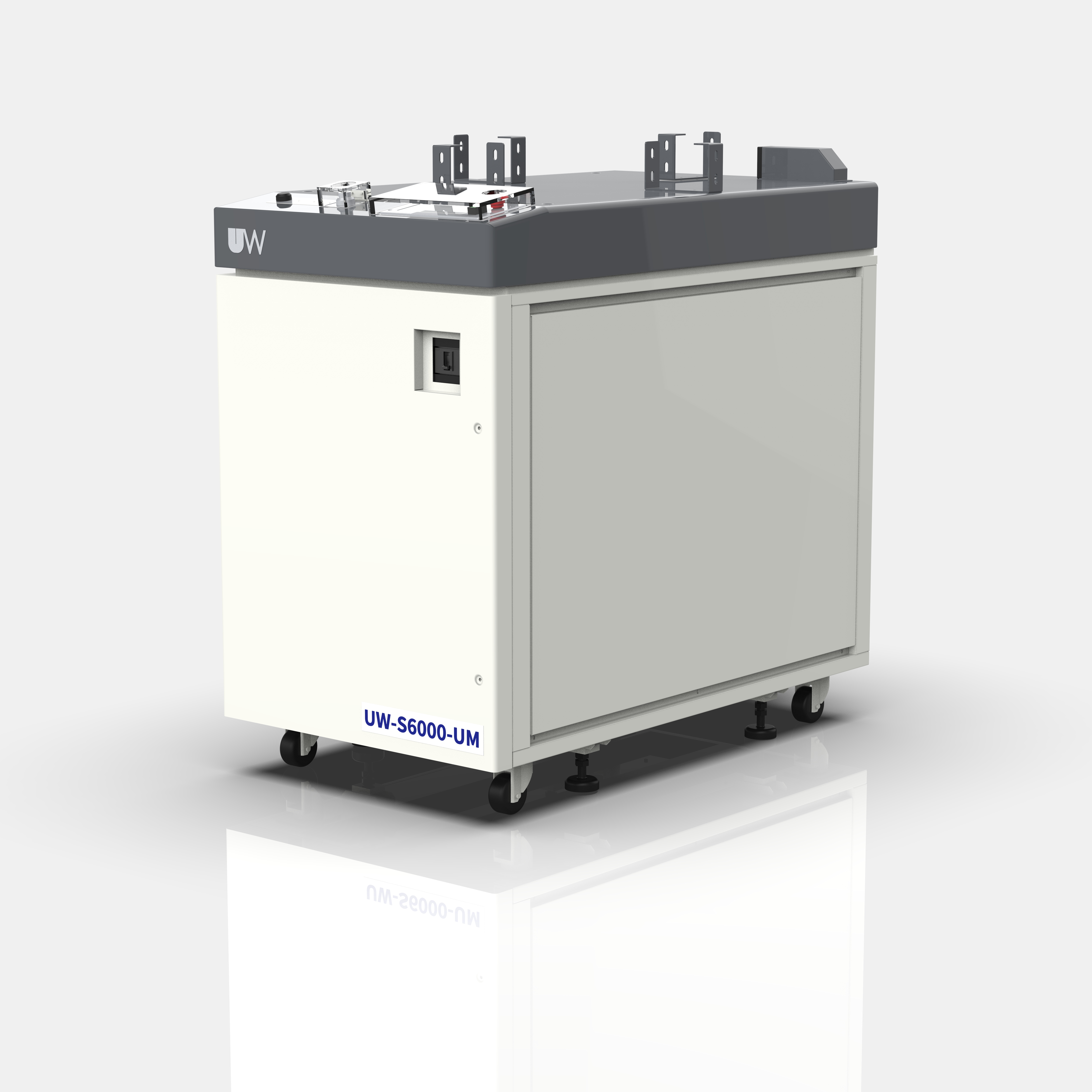

    UW-S6000-UM
    Model

    UW-S6000-UM

    Output Power

    6000W

    Power Stability

    <士1%

    Laser Wavelength

    1070nm

    Aiming and Positioning

    Red light indication (welding head CCD positioning)

    Power Input

    AC380V士10%, 50/60Hz

    Operating Mode

    Quasi-continuous wave pulse/continuous/modulated

    Power Consumption

    <30KW

    Cooling Capacity Requirements

    18KW

    Cooling Method

    Water cooling

    Dimensions (L*W*H)

    1 540mm X 780mm X 1240mm

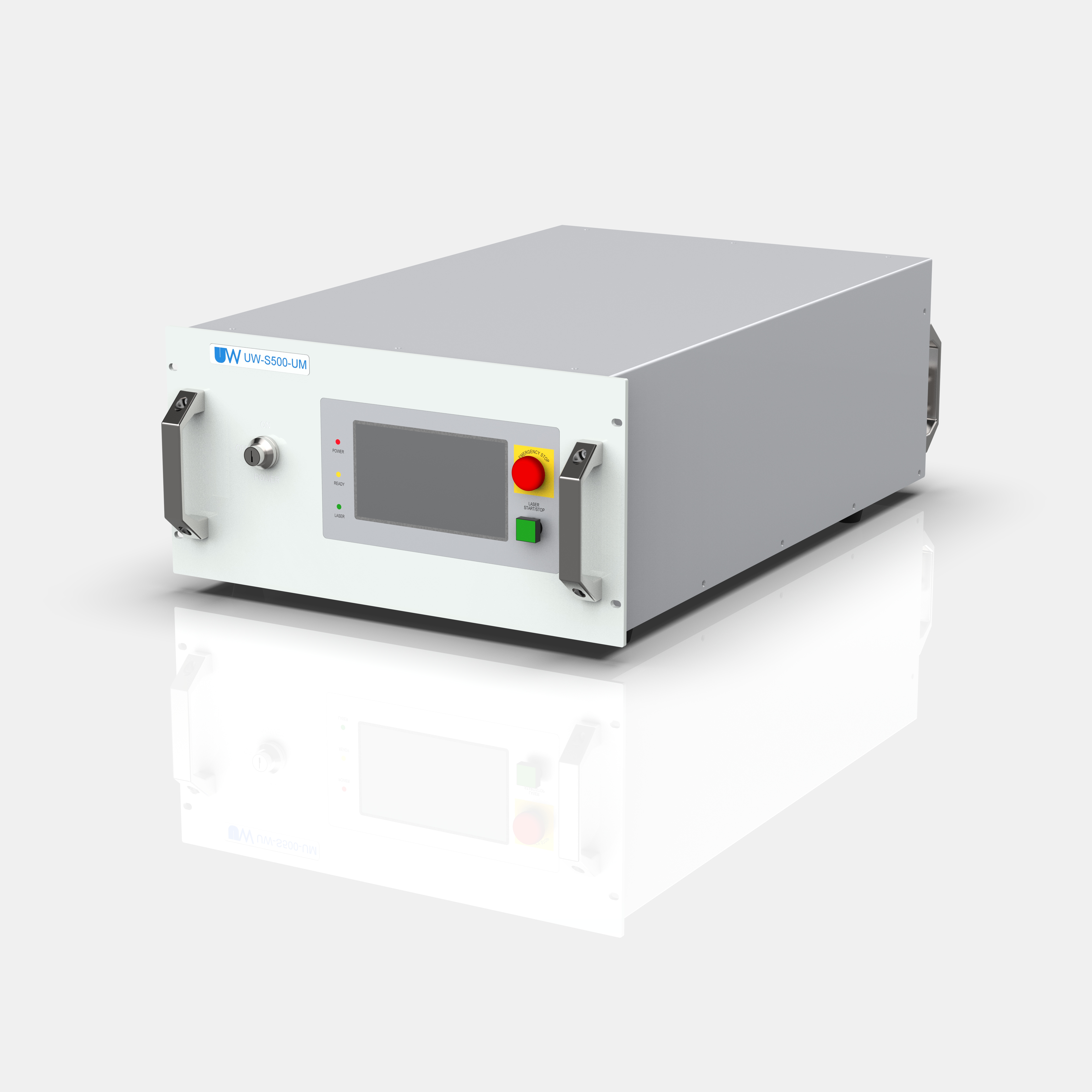

    UW-S500-UM
    Model

    UW-S500-UM

    Output Power

    >500W

    Output Power Instability (%)

    士1.5%

    Laser Wavelength (nm)

    1080士10

    Power Input

    AC220V士10%,50/60Hz,P+N+PE

    Transmission Fiber Bending Rad

    >200

    Output Power Adjustment Range

    0-100

    3dB Radiation Bandwidth (nm)

    6士4

    Dimensions (L*W*H)

    Cabinet Type 700*448*255

    Operating Ambient Temperature

    10-40

    Operating Environment Humidity

    10-90

    Storage Ambient Temperature (C

    -10-60

    Red Light Indicating Power (mW

    0.5-1
